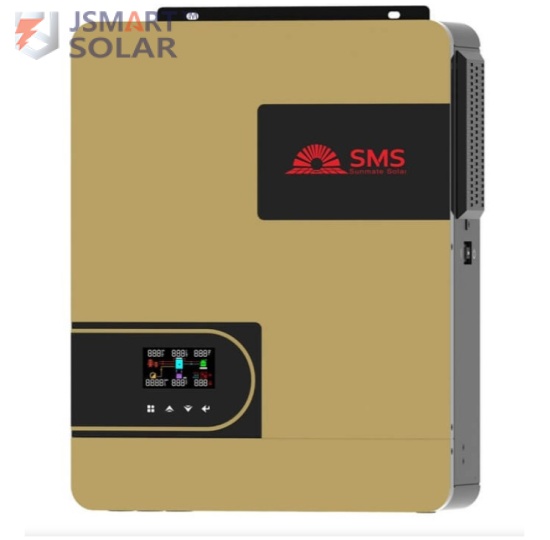

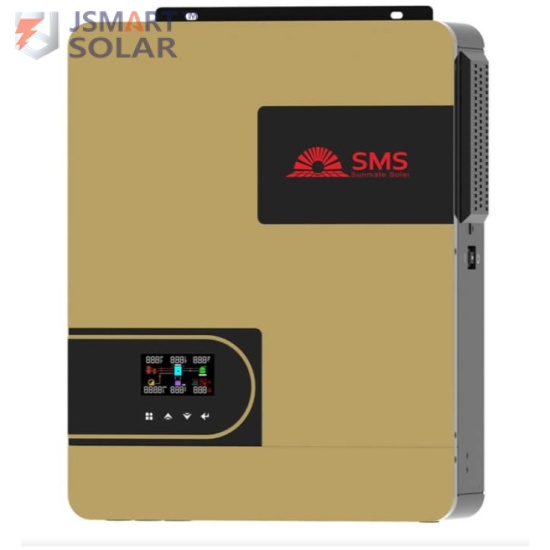

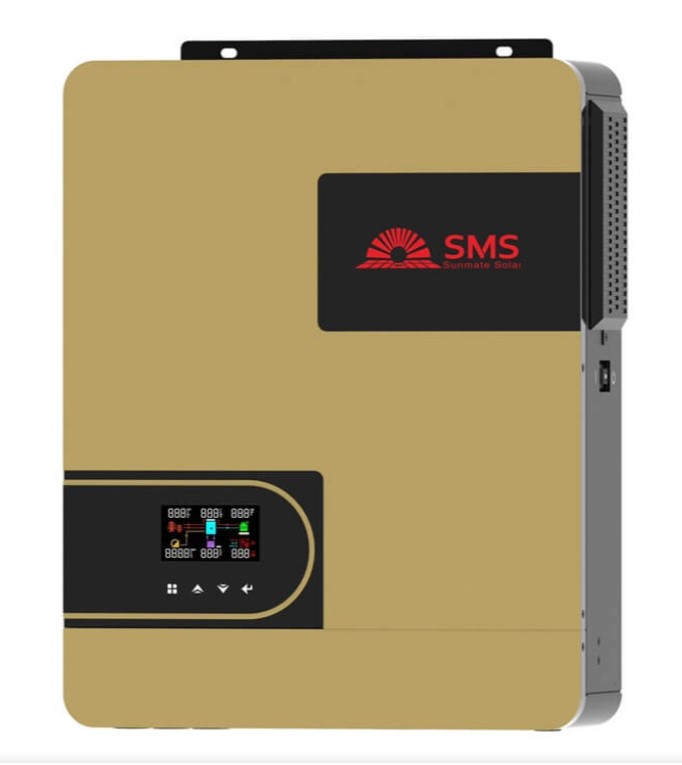

SMS-4.2KVA 24V Hybrid Inverter!

 This versatile inverter provides a robust 6200W of backup power, ensuring your appliances and lights stay on during unexpected power outages.  Additionally, it boasts a built-in solar charger, allowing you to harness the sun’s clean energy to reduce dependence on the grid and potentially lower your electricity bills.

Key Features:

1. Reliable Backup Power (6200W): Weather power cuts with confidence. The SMS-4.2KVA seamlessly switches on during outages, providing uninterrupted power to your critical devices.
2. 24V Battery Compatibility: This inverter integrates seamlessly with a 24V battery system (sold separately) to store excess solar energy and provide backup power when needed.
3. Built-in Solar Charger: Embrace clean energy independence by connecting solar panels (sold separately) to the inverter. Utilize the sun’s power to recharge your batteries and offset your electricity consumption.
4. MPPT Solar Charging Technology: Equipped with Maximum Power Point Tracking (MPPT), the inverter maximizes solar energy harvest from your panels by operating at their ideal voltage output, ensuring optimal efficiency.
5. Wide MPPT Voltage Range (60-450Vdc): The inverter offers compatibility with various solar panel configurations by accepting a broad MPPT voltage range.
6. High Conversion Efficiency (up to 97%) : Minimal energy loss during operation translates to cost savings.
7. Selectable Grid Output Voltage (220Vac, 230Vac, or 240Vac): Configure the inverter to match your existing electrical system.
8. Grid Charging Capability: Charge your batteries from the utility grid during off-peak hours for additional cost savings (may require additional utility meter).

Technical Specifications:

1. Operating Temperature Range: -10°C to +50°C
2. Model Number: SMS-4.2KW-24V
3. Made in China
4. PV Input (Solar Input):
5. Nominal Operating Voltage: 240Vdc
6. Maximum PV Voltage (Vmax PV): 500Vdc
7. PV Input Voltage Range: 60Vdc to 450Vdc
8. Maximum Input Current (Imax PV): 27A
9. Full Load MPPT Range: 240Vdc to 450Vdc
10. Rated Power: 6200W
11. Maximum Solar Charging Current: 120A
12. Grid/AC Output (Utility Output):
13. Nominal Output Voltage: Selectable 220Vac, 230Vac, or 240Vac
14. Feed-in Grid Voltage Range: 195 Vac to 253 Vac
15. Feed-in Grid Frequency Range: 49Hz to 51Hz ± 1Hz
16. Nominal Output Current: 15.7A
17. Power Factor Range: Greater than 0.99
18. Maximum Conversion Efficiency (DC/AC): 97%
19. Nominal Operating Frequency: 50Hz or 60Hz (selectable)
20. AC Input (Grid Charging):
21. Nominal Operating Voltage: 230Vac
22. Maximum Input Current: 30A
23. Nominal Operating Frequency: 50Hz or 60Hz (selectable)
24. Surge Power: 7200VA
25. Maximum AC Charging Current: 100A
26. Battery Voltage Range: 20Vdc to 33Vdc
27. Maximum Battery Current: 150A
