Description

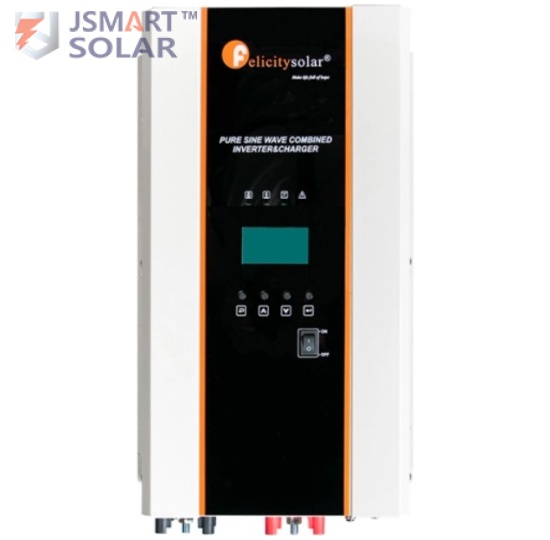

IVPS 3.5KVA 24V Upgrade System Stronger protection Built in BMS System Solar Inverter for Home Use
IVPS3524
Communication
RS232
Nominal Input Voltage
220V
Max. Charging Current
40A
IVPS Inverter SPECIFICATIONS
| Model | IVPS2512 | IVPS2524 | IVPS3524 | IVPS3548 | IVPS5024 | IVPS5048 | IVPS7548 | IVPS10048 |
| Rated Output Power(VA) | 2500VA | 2500VA | 3500VA | 3500VA | 5000VA | 5000VA | 7500VA | 10000VA |
| Rated Output Power(W) | 2000W | 2000W | 2800W | 2800W | 4000W | 4000W | 6000W | 8000W |
| Nominal DC Input Voltage | 12V | 24V | 48V | 24V | 48V | |||
| Input Voltage Waveform | Sinusoidal(Utility or generator) | |||||||
| Nominal Input Voltage | 220Vac | |||||||
| Low Line Disconnect | 170±7Vac(UPS) 90±7Vac(APL) | |||||||
| Low Line Re-connect AC Input Range |
180±7Vac(UPS) 100±7Vac(APL) | |||||||
| High Line Disconnect | 280±7Vac | |||||||
| High Line Re-connect | 270±7Vac | |||||||
| Max AC Input Voltage | 280Vrms | |||||||
| Nominal Input Frequency | 50Hz/60Hz | |||||||
| Low Line Frequency Disconnect |
40±1Hz | |||||||
| Low Line Frequency Re-connect |
42±1Hz | |||||||
| High Line Frequency Disconnect |
65±1Hz | |||||||
| High Line Frequency Re-connect |
63±1Hz | |||||||
| Output Voltage Waveform | As same as input waveform | |||||||
| Over-Load Protection(SMPS load) |
AC 30A | Air switch protection | ||||||
| Output Short Circuit Protection |
AC 30A | Air switch protection | ||||||
| Efficiency(Line mode) | ≥95% (Rated R load, and battery is fully charged) | |||||||
| Transfer Time (AC to DC) | 15ms (typical) | |||||||
| Transfer Time(DC toAC) | 15ms (typical) | |||||||
| Pass Through Without Battery |
No | |||||||
| Max Bypass Overload Current |
AC 30A | AC 63A | ||||||
| Utility Charge Mode Specifications | ||||||||
| Nominal Input Voltage | 220Vac | |||||||
| Input Voltage Range | 90~280Vac | |||||||
| Nominal Output Voltage | Dependent on battery type | |||||||
| Max Charge Current | 40A | 50A | 60A | 80A | ||||
| Charge Current Regulation | 0A~40A | 0A~50A | 0A~60A | 0A~80A | ||||
| Battery Initial Voltage | Circuit breaker | |||||||
| Charger Short Circuit | AC30A | AC 63A | ||||||
| Breaker Size | Dependent on battery type or Self-defined | |||||||
| Over Charge Protection | Yes |
