Description

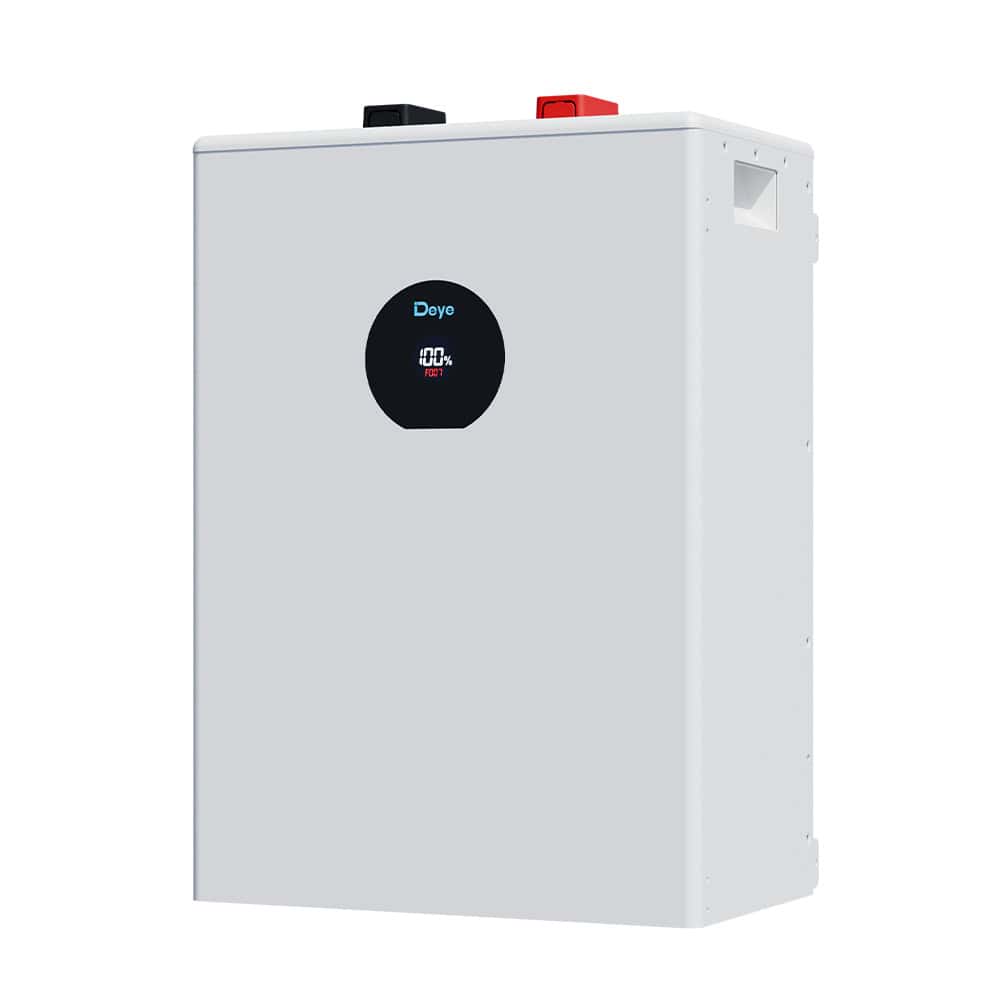

Deye 12kWh (SE-F12-C) is a high-capacity 51.2V LiFePO4 lithium battery designed for residential and commercial use. Equip with …..

High Energy Capacity: 11.8 kWh nominal energy for reliable storage

Scalable Design: Supports up to 64 units in parallel, expanding storage to 18 MWh

Advanced Lithium-Ion Technology: Safe and durable LiFePO4 battery chemistry

Long Lifespan: Over 6,000 charge cycles at 80% Depth of Discharge

Durable Housing: IP21 rating with wall-mounted or stack-mounted installation options

Smart Monitoring: Bluetooth APP for real-time performance monitoring and system control

Wide Temperature Range: Operates from -20°C to 55°C for various environments

                                                      10 years Warranty

Technical Specifications

Model-SE-F12-C

Battery Chemistry-LiFePO4

Capacity-230 Ah

Scalability-Max. 64 pcs in parallel

Nominal Voltage-51.2 V

Operating Voltage-44.8V~57.6V

Nominal Energy-11.8 kWh

Weight Approximate-84 kg

Dimension (W×H×D) 400 × 559×233mm
