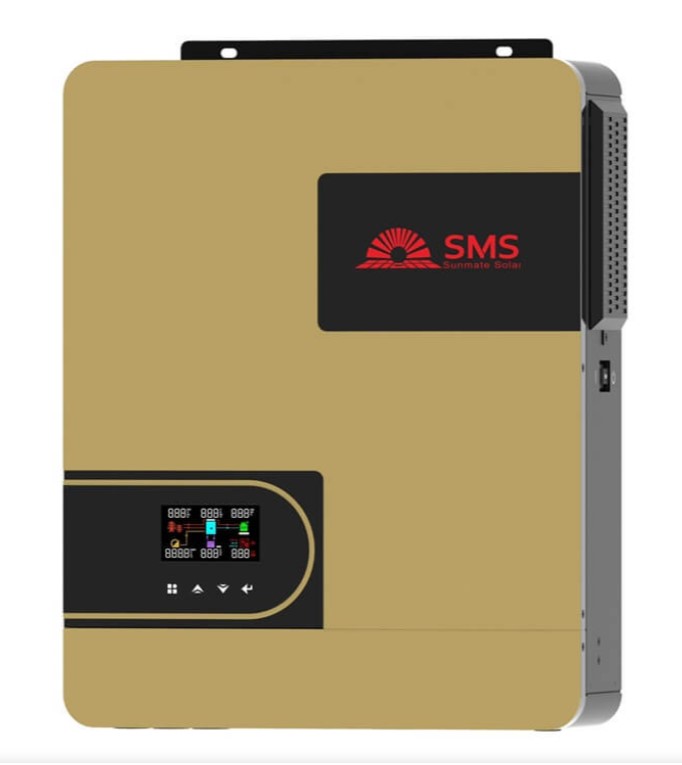

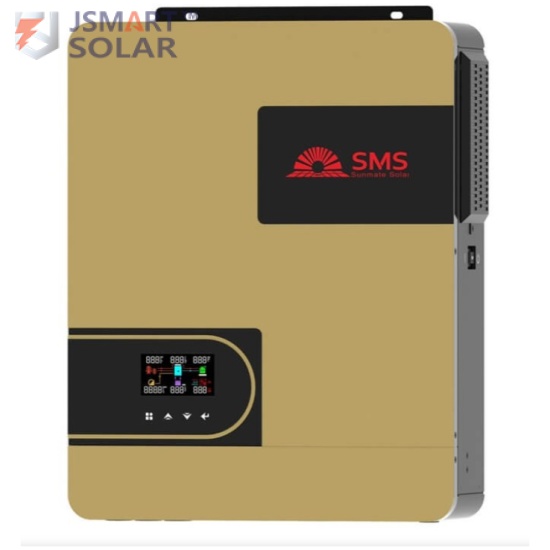

Get The Best Out Of Solar Energy With The SMS-10.2kva 48v Hybrid Inverter!

This robust inverter provides a staggering 10200W of continuous backup power, ensuring your entire home remains operational during unexpected power outages.  Additionally, it boasts a built-in solar charger, allowing you to harness the sun’s clean energy to potentially reduce dependence on the grid and potentially lower your electricity bills.

Key Features:

1. Excellent Backup Power (10200W): Weather power cuts with confidence. The SMS-10.2KVA seamlessly switches on during outages, providing uninterrupted power for your entire household, including high-wattage appliances.
2. 48V Battery Compatibility: Integrates seamlessly with a 48V battery system (sold separately) to store excess solar energy and provide backup power when needed.
3. Embrace Solar Energy: Connect solar panels (sold separately) to the inverter and utilize the sun’s power to recharge your batteries and offset your electricity consumption.
4. MPPT Solar Charging Technology: Equipped with Maximum Power Point Tracking (MPPT), the inverter maximizes solar energy harvest from your panels by operating at their ideal voltage output for optimal efficiency.
5. Wide MPPT Voltage Range (90-450Vdc): The inverter offers compatibility with various solar panel configurations by accepting a broad MPPT voltage range.
6. High Conversion Efficiency (up to 98%) : Minimal energy loss during operation translates to cost savings.
7. Selectable Grid Output Voltage (220Vac, 230Vac, or 240Vac): Configure the inverter to match your existing electrical system.
8. Grid Charging Capability: Charge your batteries from the utility grid during off-peak hours for additional cost savings (may require additional utility meter).
9. Dual Load Outputs: Power essential appliances and even run a separate circuit for additional devices with the 10200W full load capacity and a dedicated 3400W second load output.

Technical Specifications:

General Spec:

• Model Number: SMS-10.2KW-48V
• Operating Temperature Range: -10°C to +50°C
• Manufacturer: Made in China
• Dimensions and Weight: Not specified
• RoHS Compliant

PV Input (Solar Input):

• Nominal Operating Voltage: 360Vdc
• Maximum PV Voltage (Vmax PV): 500Vdc
• PV Input Voltage Range: 90Vdc to 450Vdc
• Maximum Input Current (Imax PV): 27.0A
• Full Load MPPT Range: 360Vdc to 450Vdc
• Rated Power: 10200W/10200VA
• Maximum Solar Charging Current: 160A

Grid/AC Output (Utility Output):

• Nominal Output Voltage: Selectable 220Vac, 230Vac, or 240Vac
• Feed-in Grid Voltage Range: 195Vac to 253Vac
• Feed-in Grid Frequency Range: 49Hz to 51Hz ± 1Hz
• Nominal Output Current: 44.3A
• Power Factor Range: Greater than 0.99
• Maximum Conversion Efficiency (DC/AC): 98%
• Nominal Operating Frequency: 50/60Hz (selectable)

Two Load Output Power:

• Full Load: 10200W
• Maximum Main Load: 10200W
• Maximum Second Load: 3400W
• Main Load Cut Off Voltage: 44Vdc
• Main Load Return Voltage: 48Vdc

AC Input (Grid Charging):

• Nominal Operating Voltage: 230Vac
• Maximum Input Current: 50A
• Nominal Operating Frequency: 50/60Hz (selectable)
• Surge Power: 20400VA
• Maximum AC Charging Current: 160A

Battery:

• Battery Voltage Range: 40Vdc to 63Vdc
• Maximum Battery Current: 212.5A
